Compact Steering Unit
Classic Mixed-Flow High-Efficiency Waterjet
CSU
DESIGNED FOR NARROW SPACES
The CSU bucket design is optimized for installations where split duct reversing buckets will not fit. The classic bucket design allows for closer center to center installations
MIXED-FLOW HIGH-EFFICIENCY PUMP DESIGN
Excellent maneuverability Superb acceleration High top speed
HIGHLY CUSTOMIZABLE
Choose from Composite, Steel or Aluminum for a fully customized intake. Designed to be corrosion resistant and easy to install
CSU
Max kW
Max BHP
1,500 kw–24,000 kw
2,011 BHP–28,161 BHP
Materials
- Body
- Duplex Stainless Steel
- Pump Unit
- Duplex Stainless Steel
- Intake
- Metal or Composite
For Vessels
26-200m
YOUR SCHEDULE IS
TOO TIGHT FOR A
BREAKDOWN
When you’re running all day, every day across a harrowing channel carrying precious cargo, the Compact Steering Unit (CSU) is your engine that could. Offering low fuel consumption, long range, and high speeds, you’ll be on time, every time. The CSU’s precision engineered duplex stainless steel structure is 2x stronger than standard stainless and is more corrosion resistant keeping you on the water longer. The CSU’s steering unit provides precise direction control while the duplex stainless steel construction provides superior operational functionality and efficiency. Built to keep you and your passengers where they need to be quickly and comfortably. All aboard.
Looking for some documentation?
Specifications
Applications
Large Commercial Crafts
Governmental Applications
Passenger Ferries
Yachts

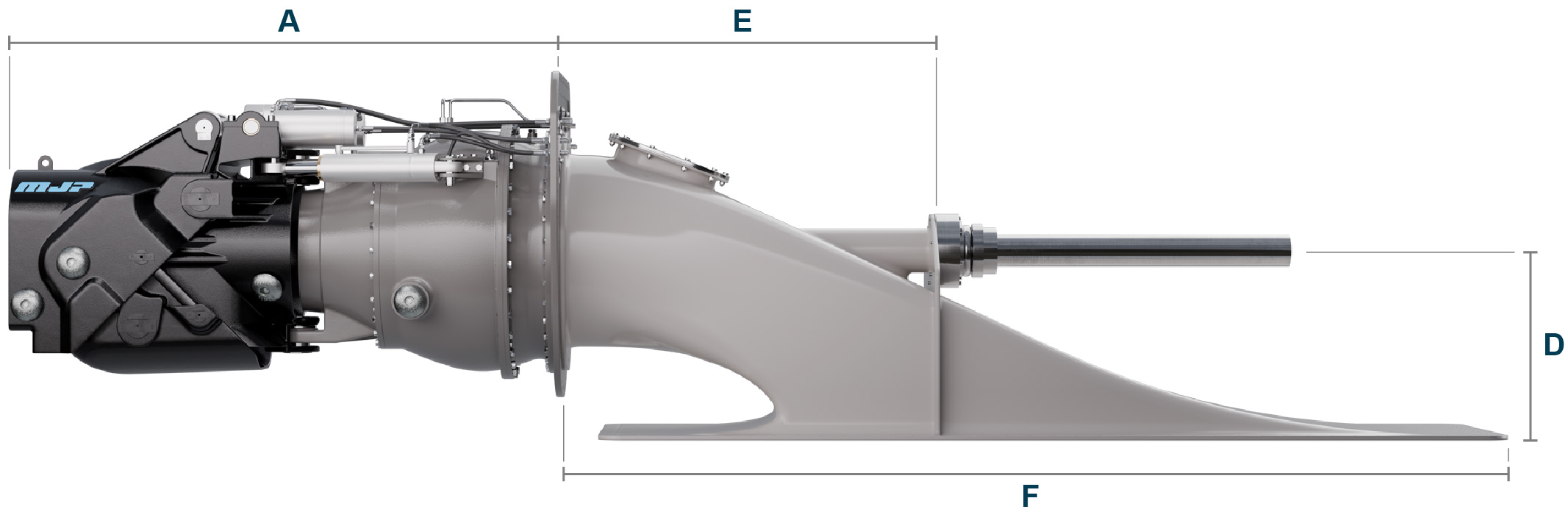

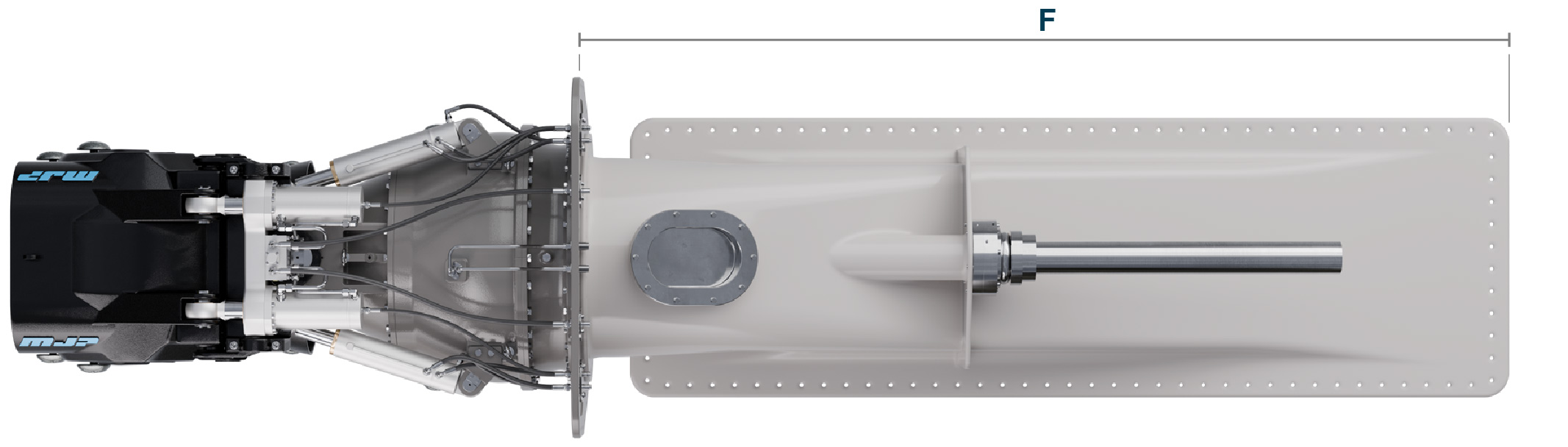

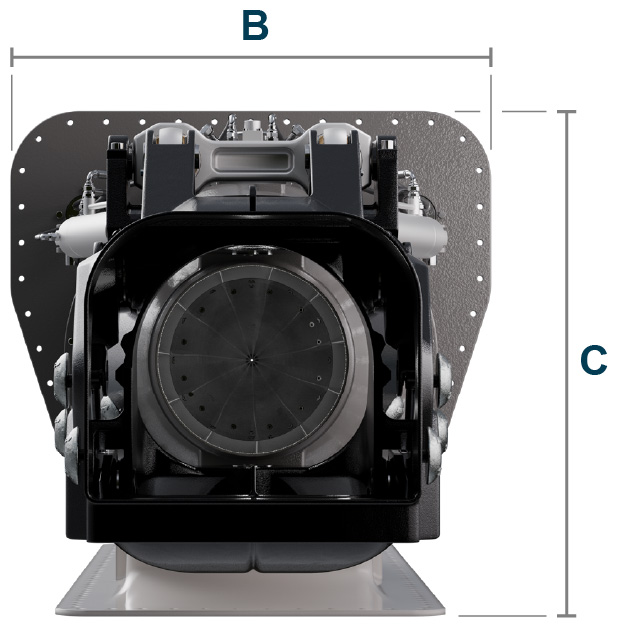

Model | Steerable | Booster | Intake | KW | A | B | C | D* | E* | F* |
---|---|---|---|---|---|---|---|---|---|---|
550 CSU | 1100 kg | 650 kg | 696 L | 2500 kW | 1562 | 866 | 580 | 550 | 2625 | 3790 |
650 CSU | 1600 kg | 1050 kg | 1149 L | 3000 kW | 1752 | 1020 | 645 | 650 | 3000 | 4510 |
750 CSU | 2300 kg | 1450 kg | 1764 L | 4000 kW | 1971 | 1133 | 673 | 750 | 3250 | 5180 |
850 CSU | 3850 kg | 2200 kg | 2754 L | 6000 kW | 2405 | 1370 | 757 | 850 | 4000 | 5890 |
950 CSU | 4350 kg | 2800 kg | 3817 L | 9000 kW | 2512 | 1480 | 817 | 950 | 4500 | 6590 |
1050 CSU | 5900 kg | 3700 kg | 5269 L | 12000 kW | 2855 | 1600 | 905 | 1050 | 5125 | 6500 |
1150 CSU | 7350 kg | 4700 kg | 6872 L | 15000 kW | 3100 | 1750 | 1000 | 1150 | 5500 | 7630 |
1350 CSU | 12000 kg | 8300 kg | 10290 L | 18000 kW | 3578 | 2019 | 1151 | 1350 | 6500 | 8000 |
1550 CSU | 17700 kg | 9700 kg | 15575 L | 21000 kW | 4075 | 2308 | 1312 | 1550 | 7000 | 9700 |
1750 CSU | 24900 kg | 16700 kg | 16400 L | 24000 kW | 4597 | 2598 | 1482 | 1750 | 5420 | 10000 |
5 YEAR WARRANTY
We take pride in our dedication to keep
your vessel operating 24/7–365. Our global
service organization is on standby to assist
you with parts, training, upgrades, and on-site
service whenever or wherever your operation
leads you. And our market leading 5-year
warranty is just another way to prove that
dedication to you.
What We Offer
- Installation Support
- Technical Support
- On-site Service
- Genuine Spare Parts
- Service Level Agreements
- Onboard Training Certification
- Swing Units
- Factory Impeller Refurbishment
- Upgrades
onuk mrtp 33
Fast Patrol / Attack Craft
LOA: 35.6 M
Beam: 6.70 M
Max Speed : up to 65 knots
Waterjets: Triple Drive MJP 750 CSU
ISREAL SHIPYARDS SHALDAG MK V
LOA: 32.65 M
Beam 6.20 M
Max Speed: 40+ knots
Waterjets: Double Drive 650 CSU
