MIXED FLOW HIGH-EFFICIENCY WATERJET WITH INBOARD HYDRAULICS
DOUBLE REVERSING BUCKET
Durability Without Limits
Operating in debris filled water and hitting sand and stones, a typical Tuesday morning. We think that’s the point. Our duplex stainless steel pumps eat rocks and sand for breakfast. So you can run aground and shrug off the rock you just turned into a paperweight to keep your focus on dropping off your payload and getting back to sea. Our Double Reversing Bucket line (DRB) offers an inboard hydraulic design and high performance pump technology to provide you with additional maneuverability and increased reversing speeds to get you in and out before they even realized you were there. Superior performance. Unmatched service life. All in a day’s work.

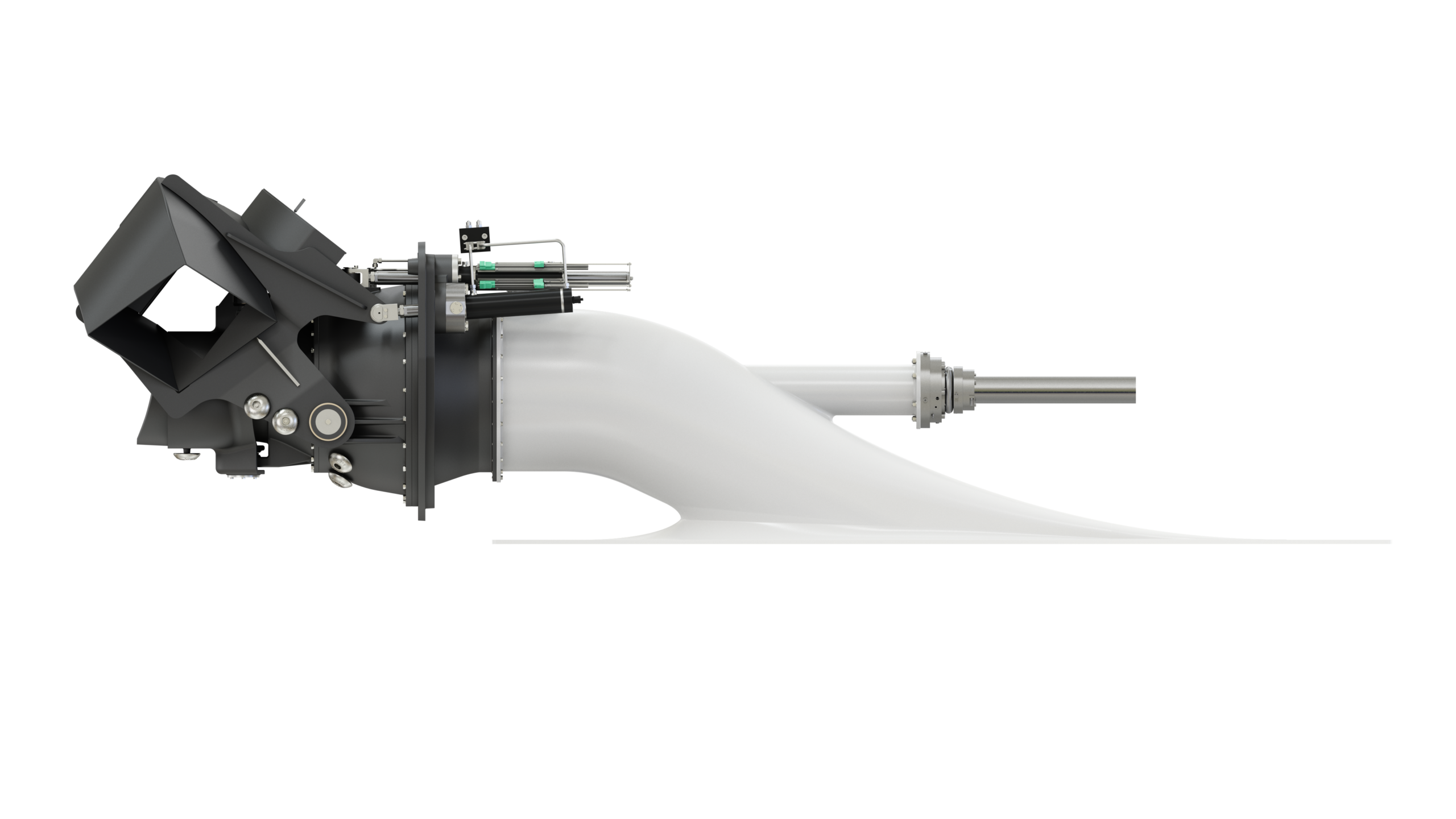

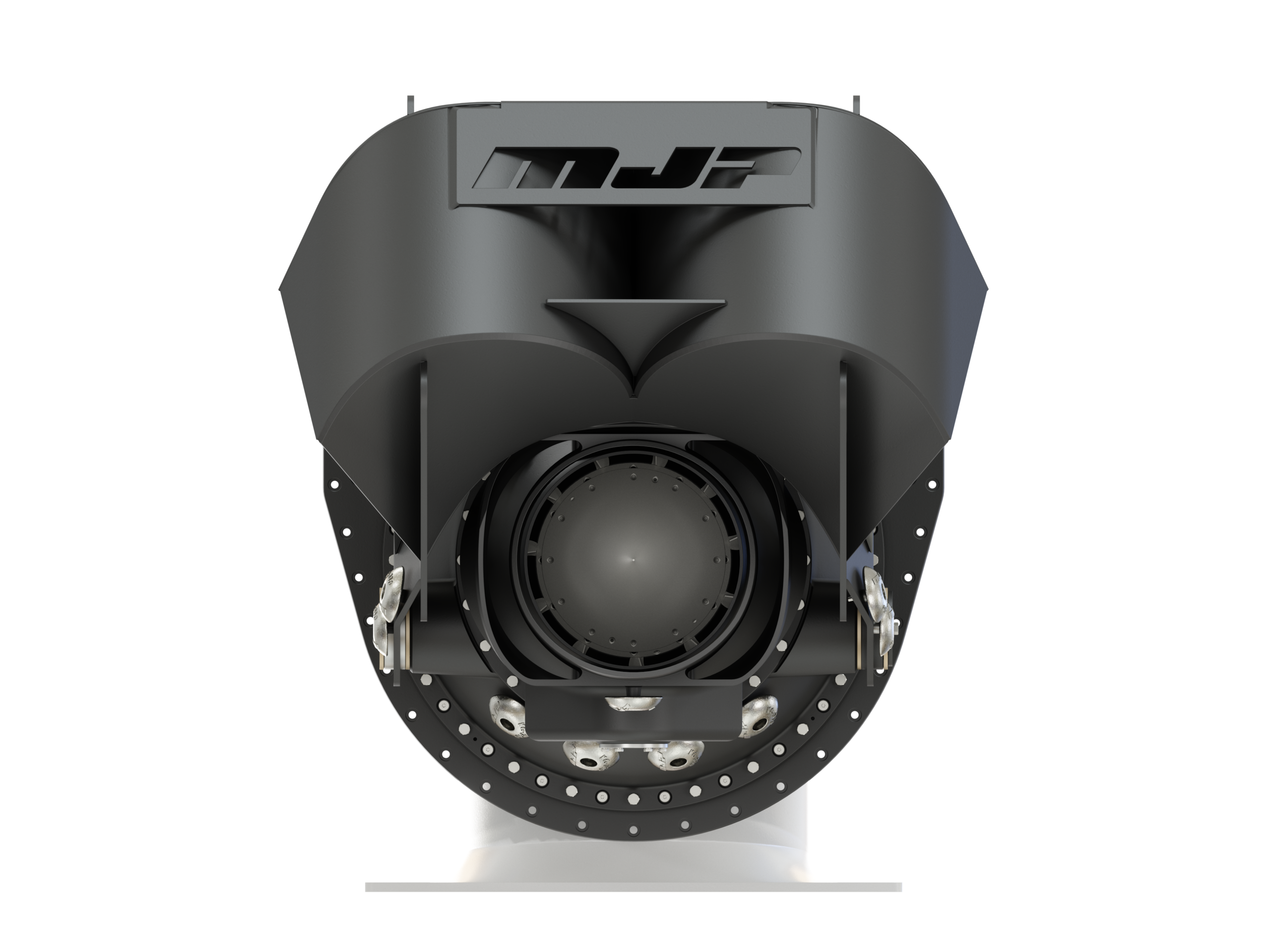

DOUBLE REVERSING BUCKET

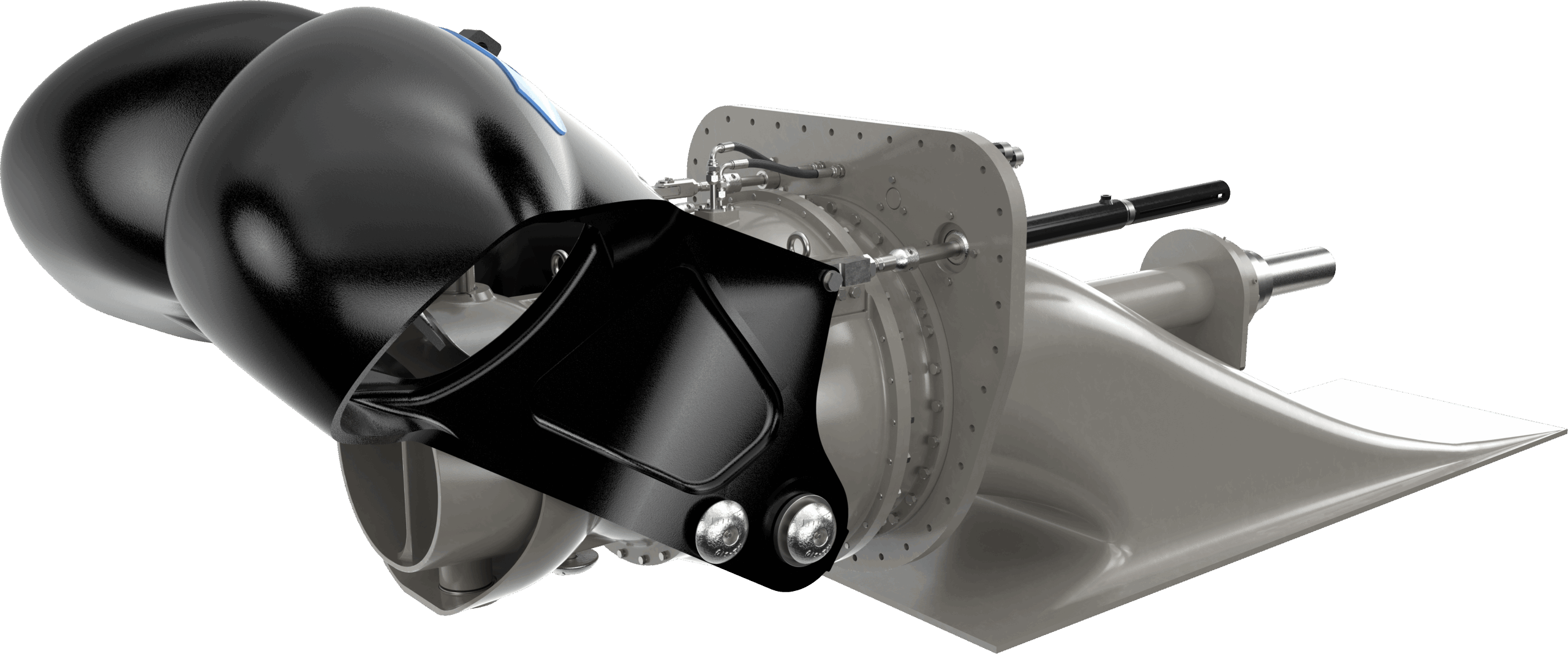

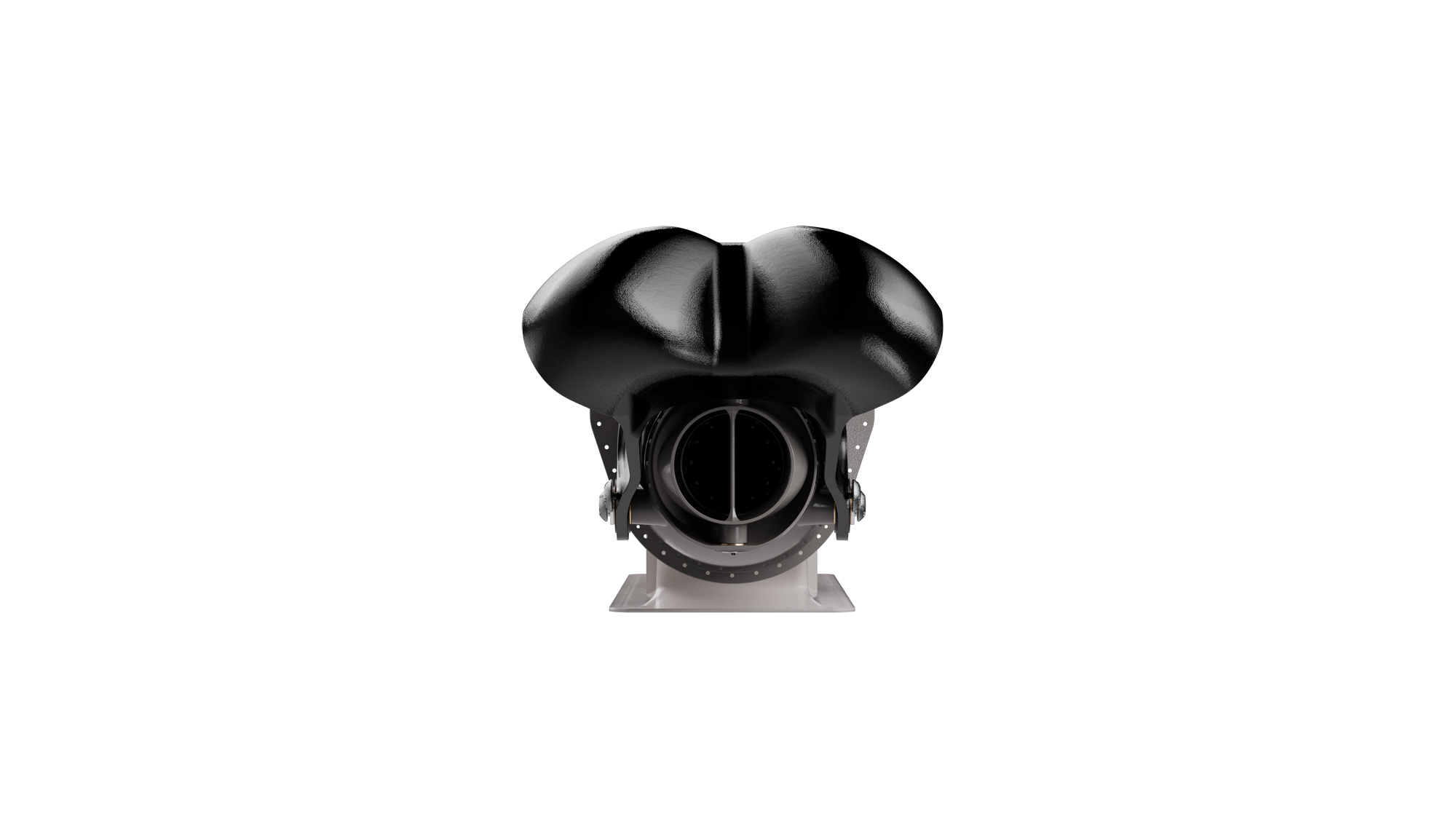

The DRB features a split duct reversing bucket for greater maneuverability and versatility.
MIXED-FLOW HIGH-EFFICIENCYPUMP DESIGN
Excellent maneuverability Superb acceleration High top speed

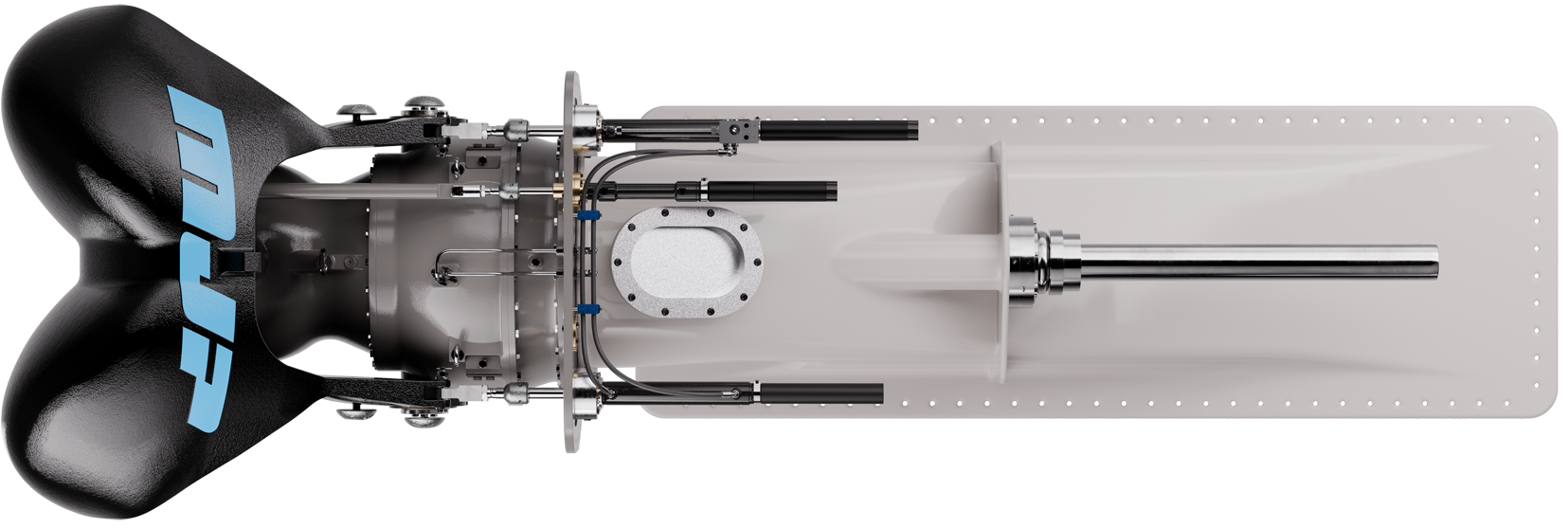

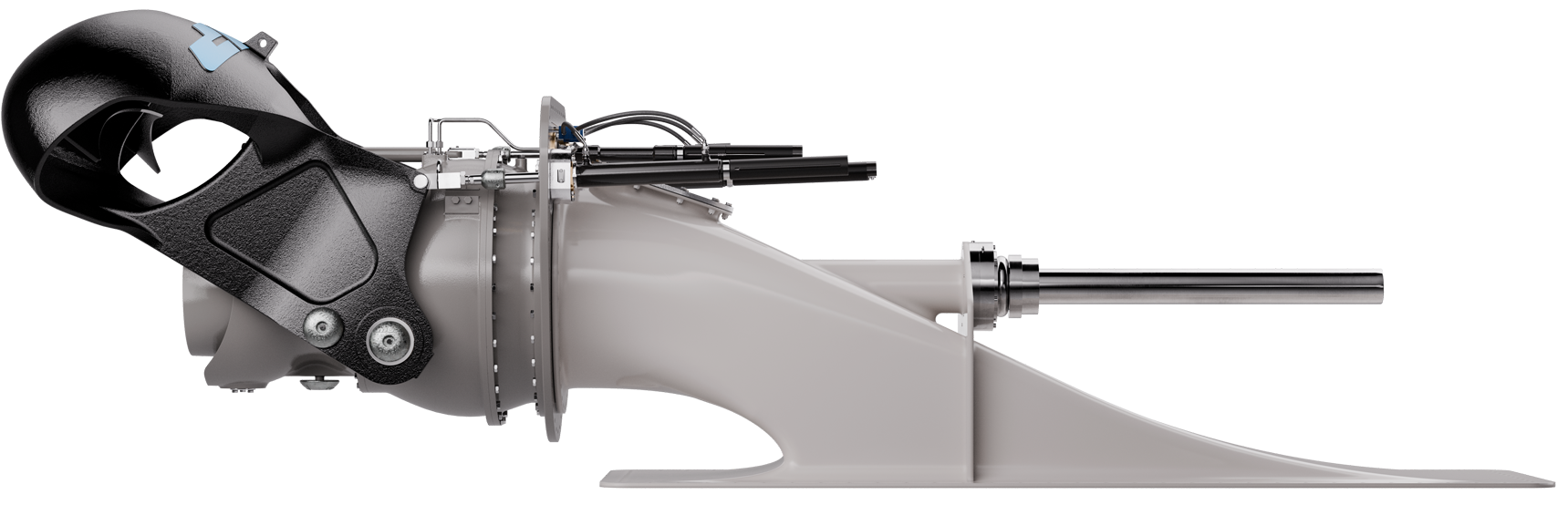

INBOARD HYDRAULICS
Hydraulics are mounted inside of the hull Ideal for small installation spaces Highly customizable Built-in thrust bearing floating drive shaft
DURABLE AND RELIABLE
Exceptional strength for operation in tough conditions. Maintenance and corrosion-free. With your choice of GRP or metal intake
MAX KW / MAX BHP
1,000 kw–9,000 kw
1,341 BHP–12,069 BHP
Materials
- Body
- Duplex Stainless Steel
- Pump Unit
- Duplex Stainless
- Intake
- Steel Metal or Composite
For Vessels
26-200m
Applications
Large Commercial Crafts
Governmental Applications
Passenger Ferries
Yachts
Specifications

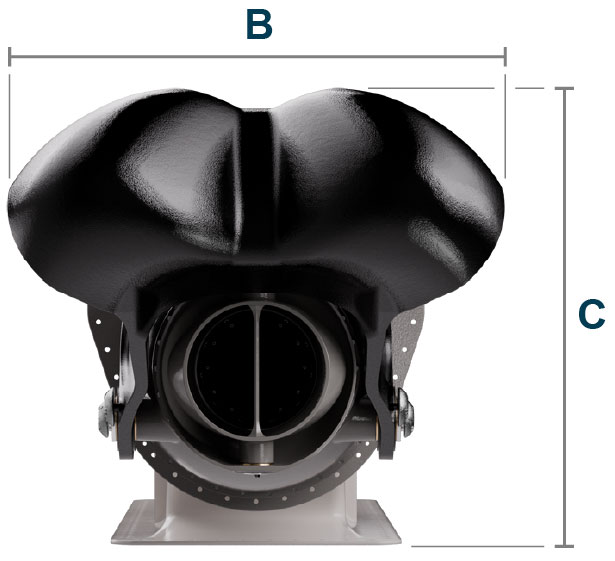

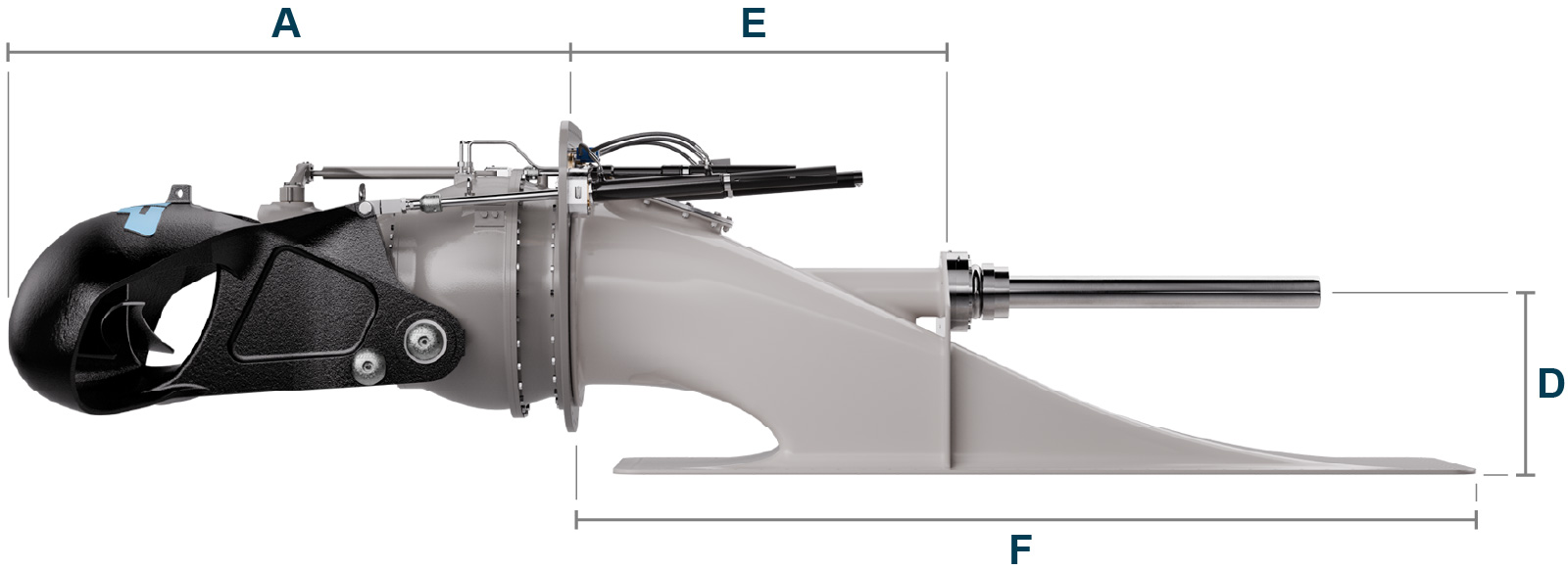

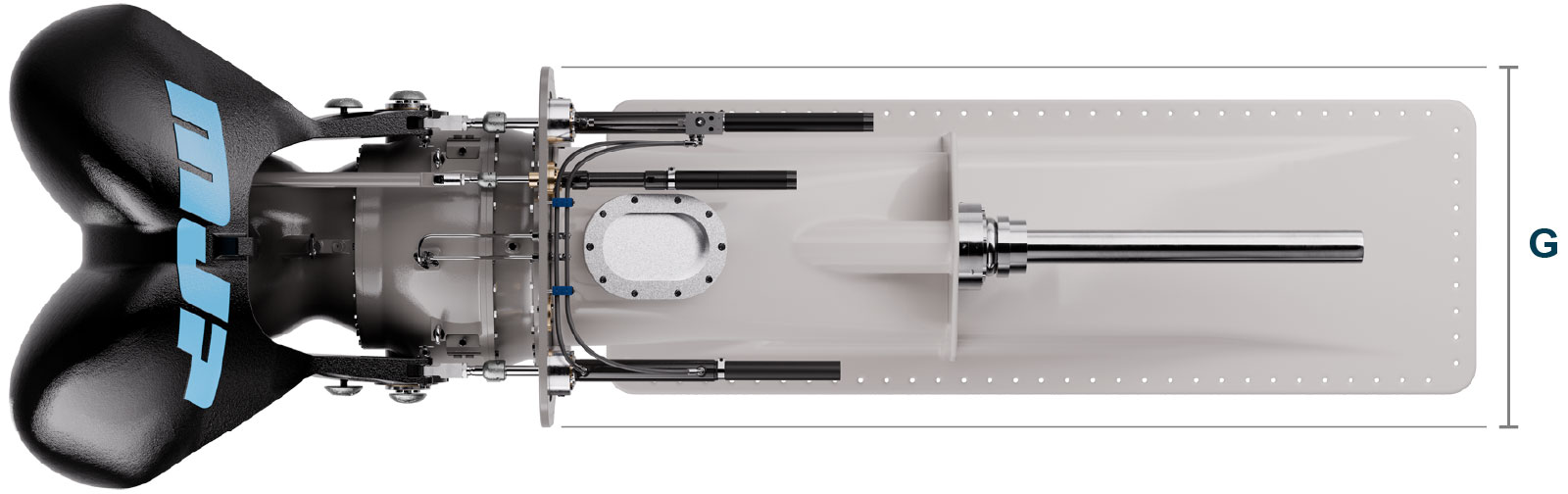

| Model | Steerable | Booster | Intake | KW | A | B | C | D* | E* | F* |
|---|---|---|---|---|---|---|---|---|---|---|
| 400 DRB | 590 kg | 300 kg | 268 L | 1250 kW | 1159 | 1108 | 623 | 400 | 1875 | 2500 |
| 450 DRB | 740 kg | 350 kg | 381 L | 1500 kW | 1019 | 1325 | 629 | 450 | 2125 | 2800 |
| 500 DRB | 850 kg | 460 kg | 523 L | 2000 kW | 1436 | 1303 | 775 | 500 | 2375 | 3100 |
| 550 DRB | 1200 kg | 650 kg | 696 L | 2500 kW | 1638 | 1520 | 870 | 550 | 2625 | 3400 |
| 650 DRB | 1820 kg | 1050 kg | 1149 L | 3000 kW | 1560 | 1375 | 970 | 650 | 3000 | 4100 |
| 750 DRB | 2730 kg | 1450 kg | 1764 L | 4000 kW | 1857 | 1600 | 1050 | 750 | 3250 | 4700 |
| 850 DRB | 4350 kg | 2200 kg | 2754 L | 6000 kW | 2286 | 1895 | 1220 | 850 | 4000 | 5300 |
References
Where Performance Meets Precision.
-
Beiyou 26 – 1200 Pax High-Speed Catamaran
Beiyou 26 is a 70-meter high-speed aluminum passenger catamaran, powered by quad MJP 850 DRB waterjets.
-
Monjed 2 – MCM Firecat 25
Monjed 2, a 25-metre FireCat catamaran fireboat built by MetalCraft Marine for the Kuwait Fire Force, features dual MJP 500…
-
Jeonnam Hospital Ship 511
Jeonnam Hospital Ship 511 is a modern 49-meter hospital vessel equipped with dual MJP 850 DRB waterjets and a hybrid…
