Ultrajet

High Thrust Axial Flow Aluminum Waterjet

ULTRA

TESTED AND PROVEN PUMP DESIGN

With more than 15,000 units in service today, the Ultrajet pump is proven to perform in some of the harshest conditions in the world

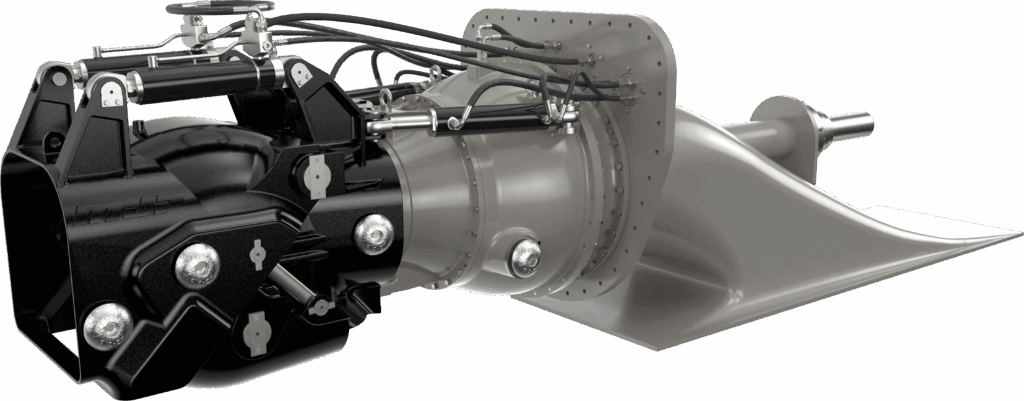

ALL-IN-ONE WATERJET

A complete jet assembly with a variety of on-jet and remote-mounted hydraulic control systems allows for quick and easy maintenance and installation.

HIGH THRUST INTAKE

Optimized for high-thrust and maximum bollard pull

ULTRA

Max kW

Max BHP

261 kW–746 kW

350 BHP–1000 BHP

Materials

Body
Aluminum
Pump Unit
Aluminum
Intake
Aluminum

For Vessels

8-17m

Big Payload
Big Power

When you work on the water there’s no room for failure. Fear not. Go ahead, push your boat to the limit. Our UltraJet is built with you in mind. Where reliability is paramount, efficiency at high thrust is expected, and performance with an oversized load is sublime. So push, pull, transfer or haul that payload with confidence and keep your focus on completing your mission. We make your business our business. Trust UltraJet to get it done.

Looking for some documentation?

Specifications

for vessels 8m-17m

Commercial Fishing Vessels
Military & Governmental Craft
Commercial Work Boats

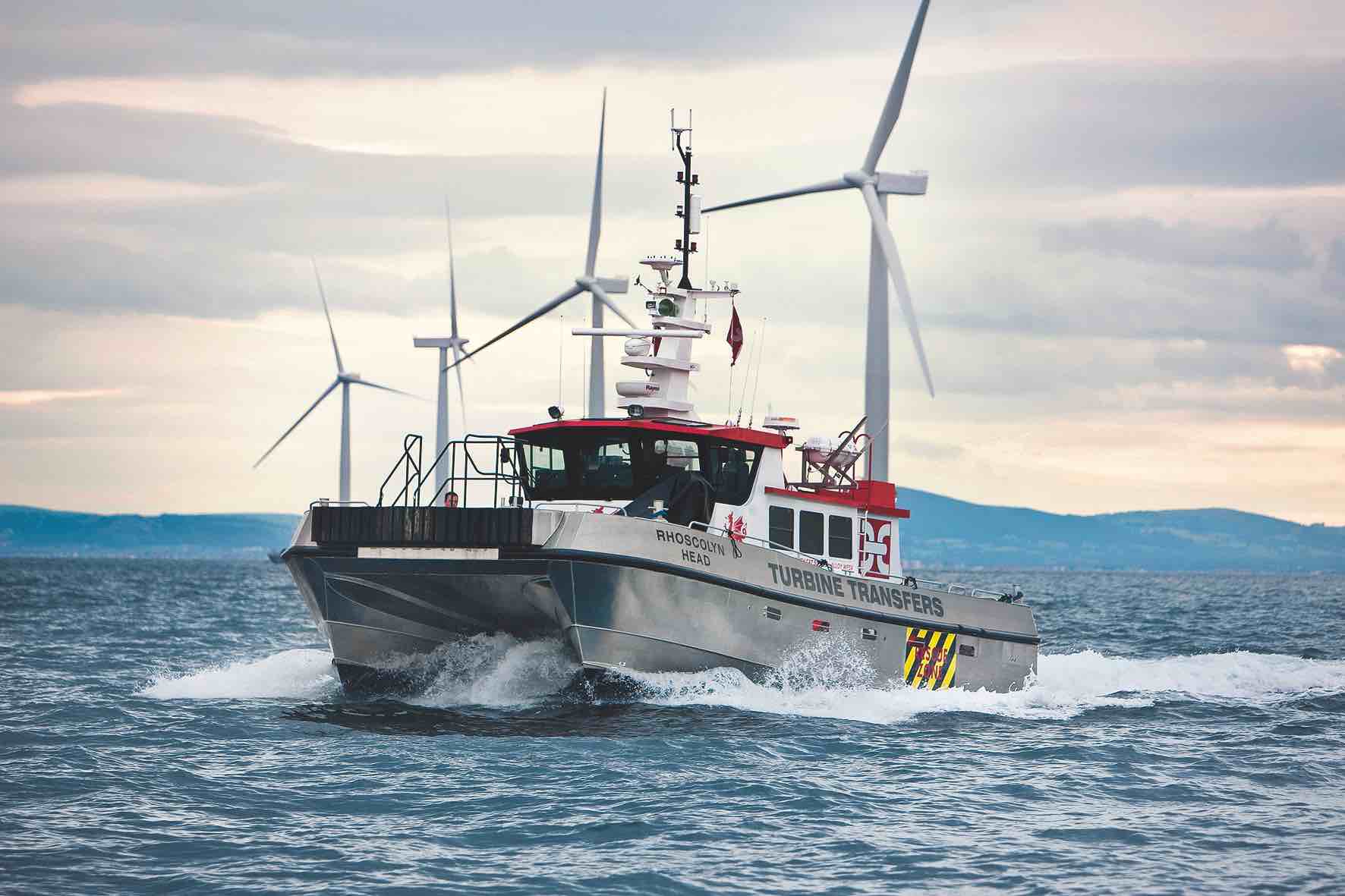

Crew Transfer Vessels

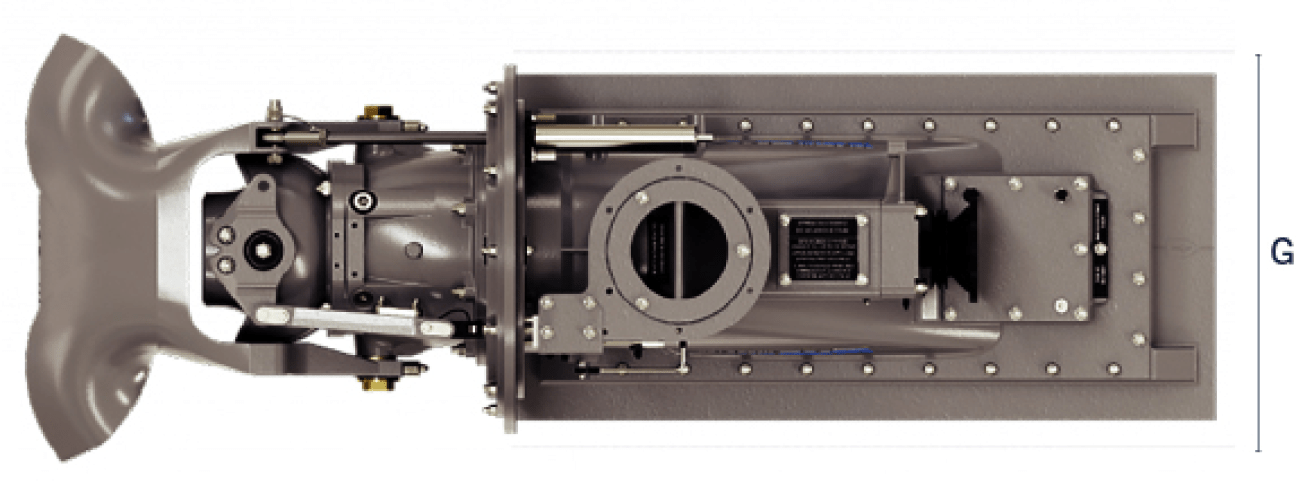

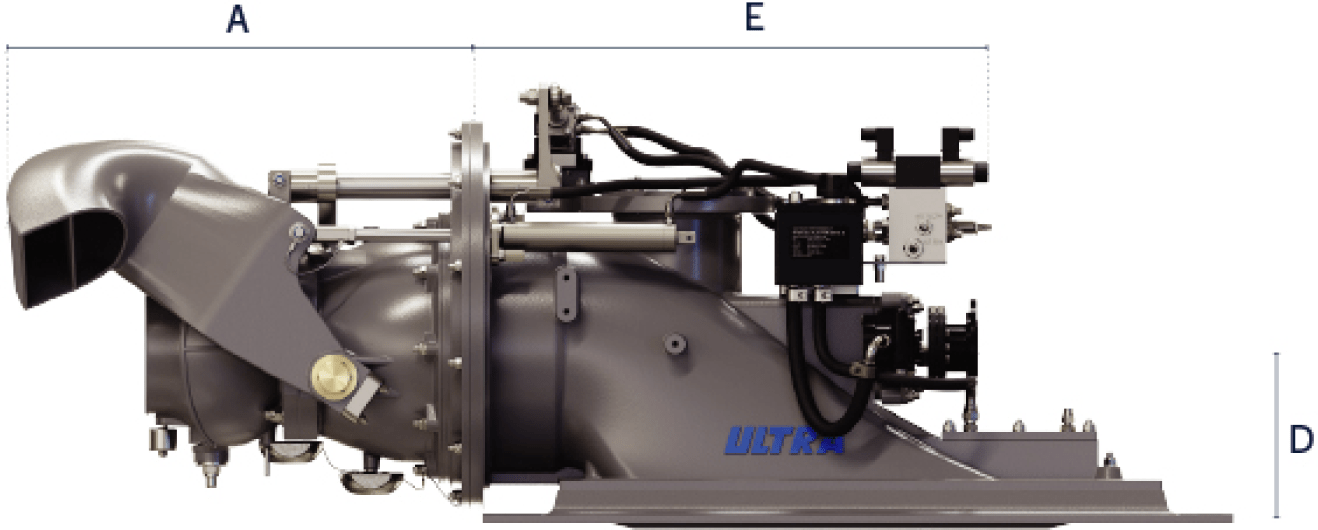

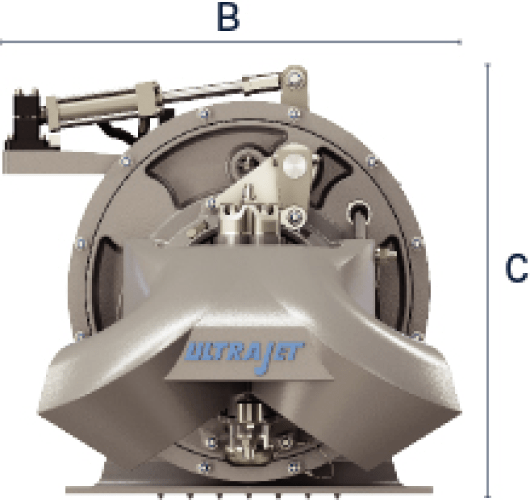

ModelSteerableBoosterIntakeKWABCD*E*F*GH
305214 kg165 kg54 L3366917776122657501140560624
305 HT227 kg171 kg66 L2986977776112657491140600622
340263 kg209 kg77 L4487467776703008481308598656
340 HT294 kg205 kg83 L4108238046722908171140600804
LONG RANGE INTERCEPTOR (LRI-II)

Built by Metal Craft Marine for the United
States Coast Guard is an 11-meter
interceptor vessel used in drug interdiction
and USA homeland security applications.
Featuring MJP 305 UltraJet and capable of
45 knots top speed.

DUTCH NAVY LANDING CRAFT

Built by Visser Den Helder a member of the
Damen Shipyards group for the Royal Dutch
Navy. This 16m aluminum landing craft is
powered by Volvo Penta D9-575 and dual MJP
410 UltraJets, capable of 32 knots top speed.m
