X-Series
High-Speed Mixed-Flow Waterjet
X
NEW STEERING FIN DESIGN
The new hydrodynamically designed steering fin gives superior responsiveness and steering efficiency
ENHANCED REVERSING BUCKET
The cast aluminum bucket has been designed to improve stopping distance and increase maneuverability. And its new narrow design minimizes center-to-center placement on multiple jet installs
NTERCEPTOR INTEGRATION
The interceptor placement maximizes stagnation pressure under the hull, generating greater lift. Additional interceptors can be fitted on either side of the jet
MIXED-FLOW DUPLEX STAINLESS STEEL PUMP
Proven with more than 18 million running hours, our stainless steel, mixed flow pump has been expertly engineered to be the most efficient and durable pump ever built
OPTIMIZED INTAKE GEOMETRY
The superior high-speed characteristics of the pump allows optimized intake at lower speeds, thereby developing optimal performance over the complete speed range, without impacting top-speed capabilities
INTEGRATED HYDRAULIC SYSTEM
The all inboard integrated hydraulic system provides superior corrosion resistance and eliminates the risk of external oil spills. Featuring separated seals for water and oil, the X Series is compliant with clean-water regulatory requirements
X
Max kW
Max BHP
611 - 2070 kW
819 - 2776 bhp
Materials
- Body
- Aluminum
- Pump Unit
- Duplex Stainless
- Intake
- Steel Aluminum
For Vessels
12-40m
Built for
X-Speed
This completely re-imagined waterjet is ushering in a new era of water propulsion performance. You asked for speed and we delivered the X-Series. With an optimized mixed flow pump capable of speeds in excess of 50 knots, buckle up. Built from duplex stainless steel, this unit is stronger, lighter, more efficient, and more corrosion resistant to keep you on the water and moving faster when every second counts. With the all new redesigned cast aluminum reversing bucket and optimized intake, you’ll be stopping on a dime and performing lightning fast maneuvers like a cheetah on the hunt. Seatbelts not included.
Looking for some documentation?
Specifications
for vessels 12m-26m
Bolt on Installation
Cast Aluminum Intake
Hydro-Mechanical Controls Available

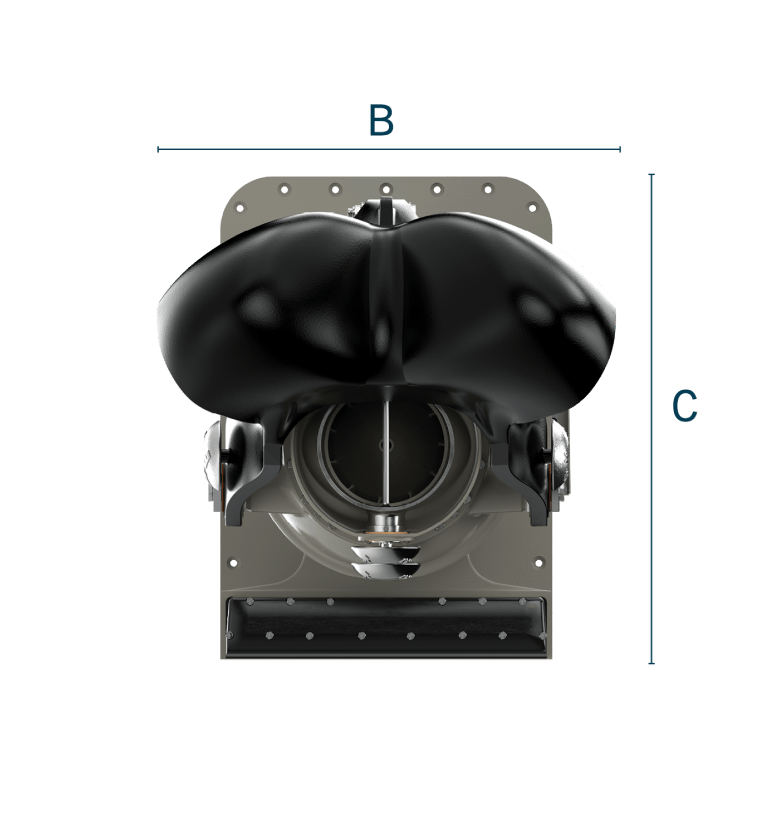

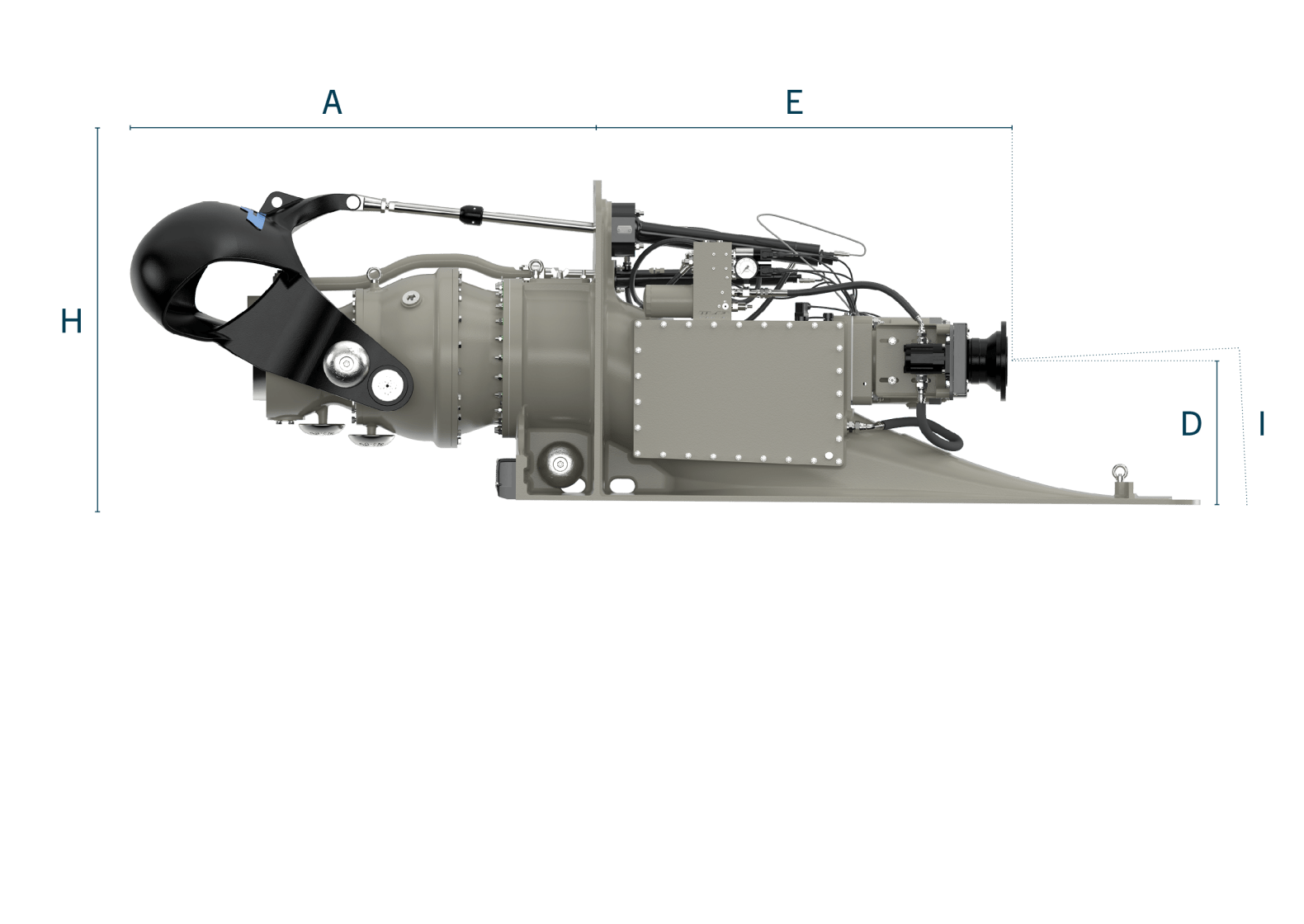

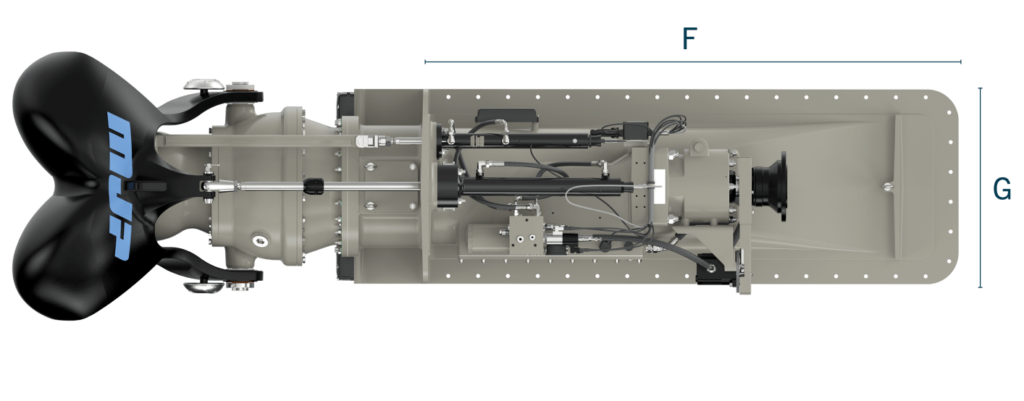

Model | Dry Weight | Intake | KW | A | B | C | D | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|---|---|---|---|
280 X | 350 kg | 48 L | 611 | 1086 | 685 | 717 | 280 | 984 | 1270 | 520 | 695 | 0° |
310 X | 390 kg | 62 L | 800 | 1173 | 758 | 750 | 361 | 925 | 1346 | 550 | 738 | 3° |
350 X | 565 kg | 106 L | 1000 | 1259 | 857 | 902 | 400 | 1140 | 1689 | 620 | 920 | 0° |

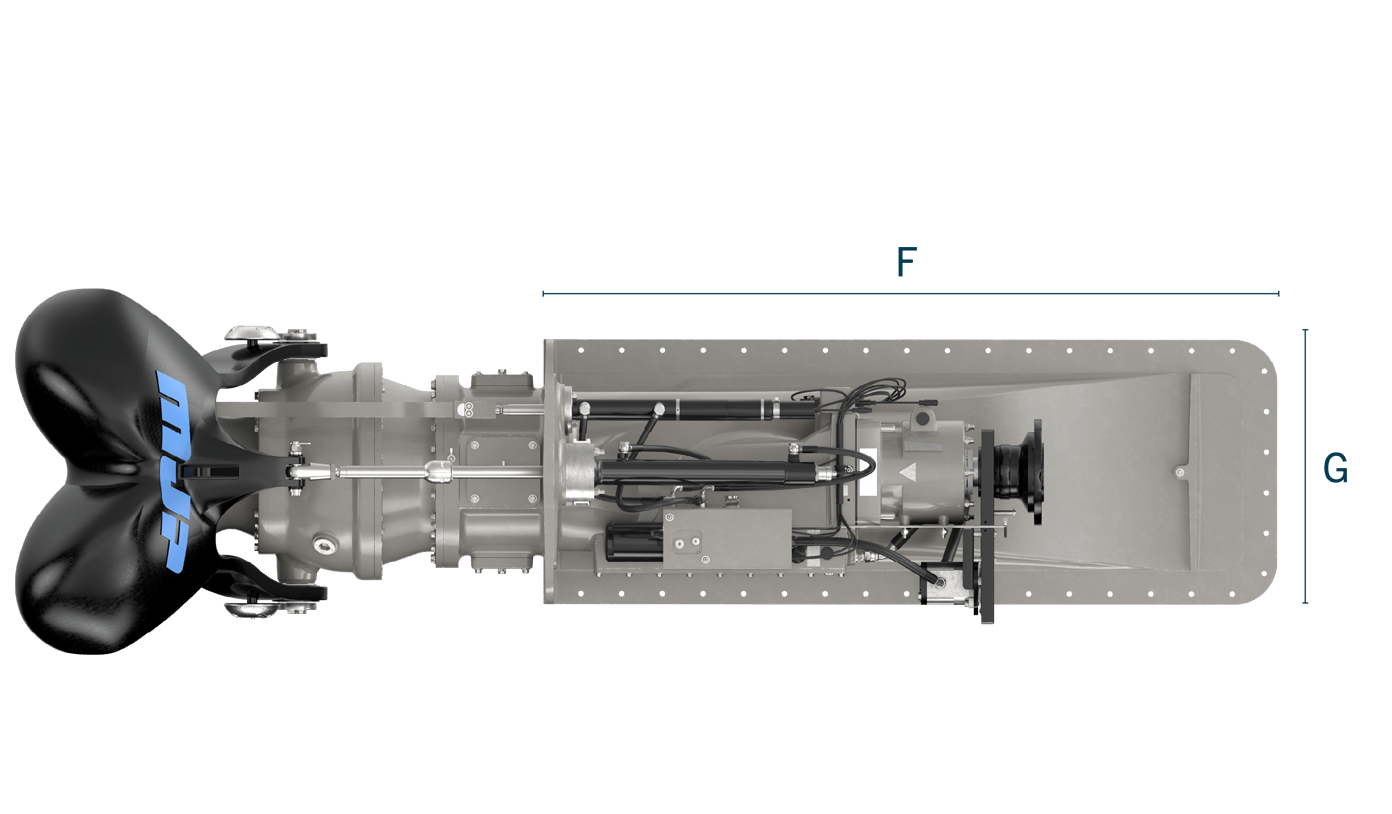

for vessels 20m-40m
Fabricated Aluminum Intake
Full Classification Approval
PTO Driven Hydraulic Pump
Model | Dry Weight | Intake | KW | A | B | C | D | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|---|---|---|---|
400 X | 800 kg | 175 L | 1330 | 1177 | 980 | 850 | 400 | 1470 | 2132 | 830 | 965 | 0° |
450 X | 1100 kg | 250 L | 1680 | 1323 | 1102 | 942 | 450 | 1590 | 2380 | 910 | 1086 | 0° |
500 X | 1500 kg | 340 L | 2070 | 1471 | 1225 | 1062 | 500 | 1800 | 2665 | 1038 | 1207 | 0° |

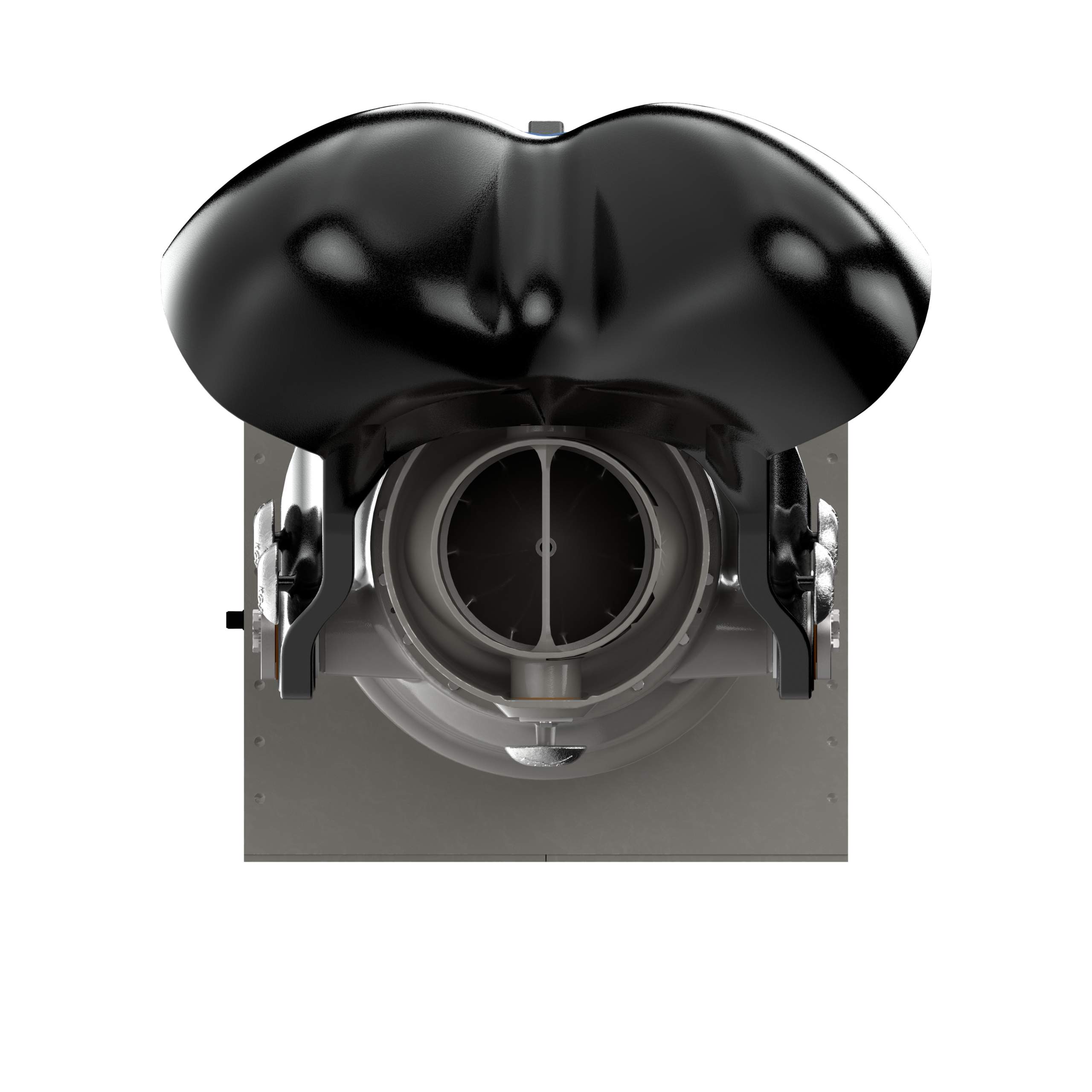

For Vessels that
operate at low-speed
- Increased Bollard Pull
- High Thrust
- Smaller Footprint
- Optimized Efficiency at Slow Speed

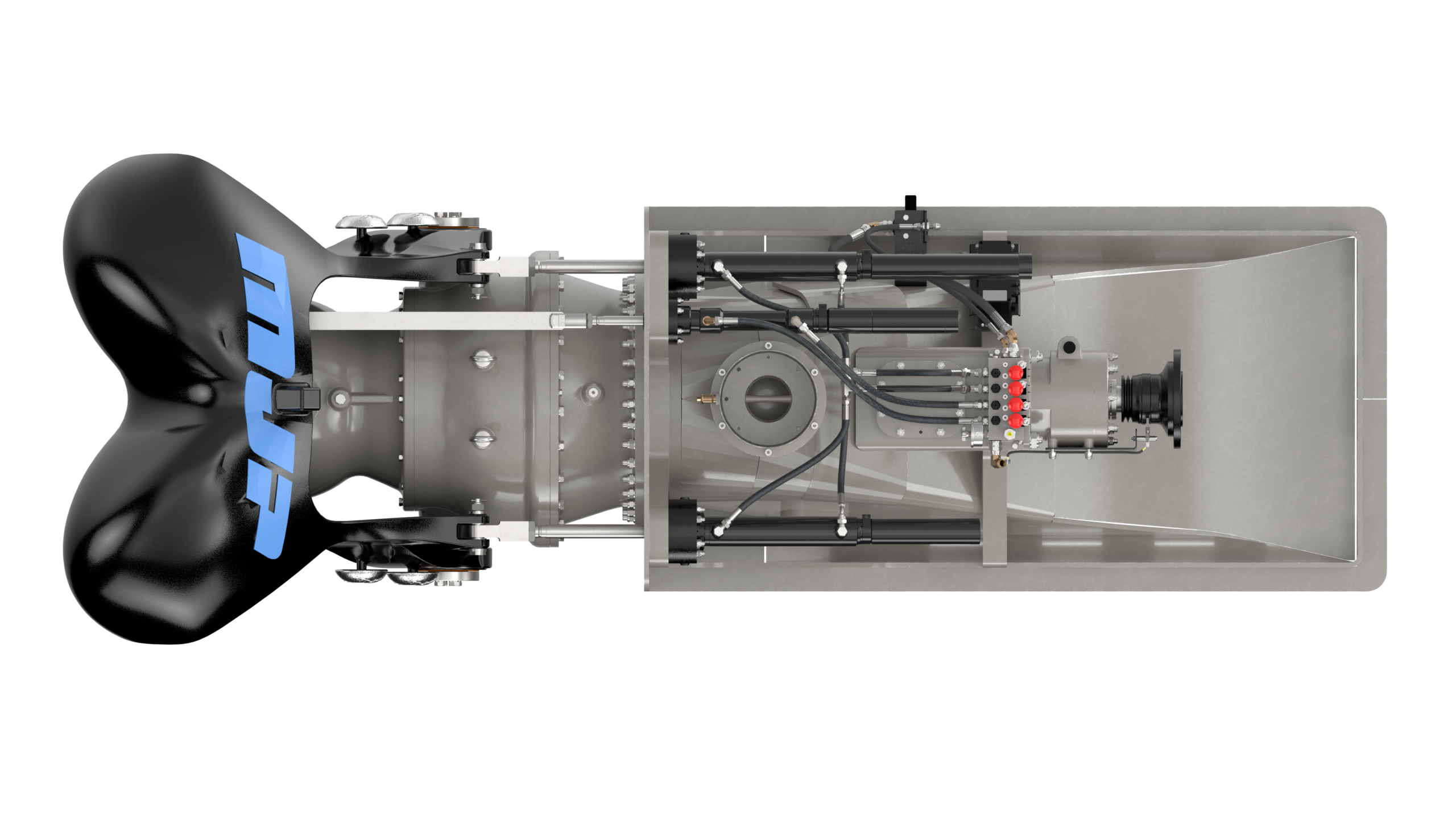

Model | Dry Weight | Intake | KW | A | B | C | D | E | F | G | H | I |
---|---|---|---|---|---|---|---|---|---|---|---|---|
280X-HT | 650 kg | 140 L | 611 | 1177 | 980 | 759 | 400 | 1105 | 1475 | 770 | 965 | 0° |
310X-HT | 880 kg | 200 L | 800 | 1326 | 1102 | 859 | 450 | 1159 | 1660 | 865 | 1086 | 0° |
350X-HT | 1124 kg | 280 L | 1000 | 1462 | 1225 | 991 | 500 | 1329 | 1843 | 960 | 1207 | 0° |
5 YEAR WARRANTY
We take pride in our dedication to keep
your vessel operating 24/7–365. Our global
service organization is on standby to assist
you with parts, training, upgrades, and on-site
service whenever or wherever your operation
leads you. And our market leading 5-year
warranty is just another way to prove that
dedication to you.
What We Offer
- Installation Support
- Technical Support
- On-site Service
- Genuine Spare Parts
- Service Level Agreements
- Onboard Training Certification
- Swing Units
- Factory Impeller Refurbishment
- Upgrades
SWEDISH SEA RESCUE SOCIETY
This 15m Fast Self Righting Rescue Craft is
involved in nearly 90 percent of all sea rescue
missions in Sweden and is funded and run
completely by donations and volunteers.
Featuring MJP 350X waterjets powered by 2
Scania 650 bhp engines. Built by Swede Ship
Marine in Sweden.
ISRAEL SHIPYARDS SHALDAG MK V
The MJP waterjets enable the Shaldag MK V to achieve exceptional speeds while maintaining stability and control, crucial for executing precise maneuvers during naval security missions. Featuring MJP 650 CSU waterjets.
